6” Submersible Pumpset-Water Filled (S.S.)



Features

High head & high efficiency
Lower power consumption & Noiseless operation
Special thrust bearing design
Stainless steel jacket & easily rewindable

Application

Sprinkler irrigation

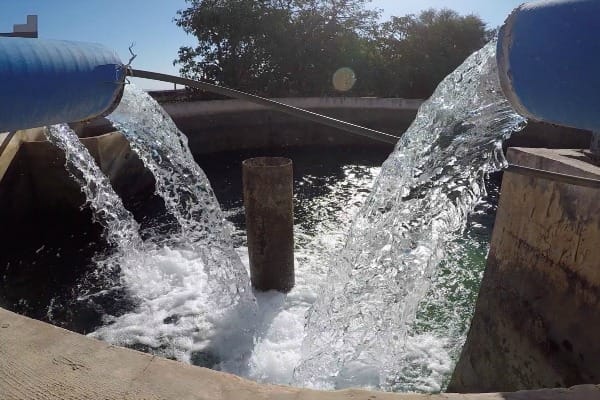

Industrial water supply
Drinking water supply
Farm house & Fountains

Range
Suitable For Borewell Size 6" & Above
Phase Three Phase
Head in Mtr. 10 to 432
Discharge in LPM 70 to 690
HP 3 to 30
Stage 2 to 30

Sprinkler irrigation

Industrial water supply

Drinking water supply

Farm house & Fountains


Standard Material of Constructions (MOC)
Sr. No. Motor Parts Material
1. Rotor Shaft EN9 / EN 19 / AISI – SS 410
2. Stator Body / Casing AISI – SS 304
3. Housing AISI – SS 304 / C.I. Gr. FG200 IS 210
4. Base Cover AISI – SS 304 / C.I. Gr. FG200 IS 210
5. Thrust Bearing Segment AISI – SS 420
6. Thrust Bearing Liner Carbon / Polymer
7. Bearing Diaphragm Nitrile Rubber
8. Bearing Bush Leaded Tin Bronze
Sr. No. Pump Material
1. Casing AISI – SS 304 investment casting
2. NRV Body AISI – SS 304 investment casting
3. Suction Casing AISI – SS 304 investment casting
4. Pump Shaft AISI – SS 410
5. Pump Sleeve AISI – SS 410
6. Impeller AISI – SS 304 investment casting or Bronze, AISI – SS 410
7. Casing Wearing Ring Nitrile Rubber /Leaded Tin Bronze
